Curating a dataset in the app • concert

This walkthrough curates the Michigan slice of the state surface water quality standards (SSWQS) dataset: 84 criteria rows covering 27 chemicals, with CAS numbers stored without hyphens, results in scientific notation, and a mix of units. Each step below is one tab in the app. Tabs appear as earlier steps finish.

Start the app:

concert::run_app()

Curation needs network access and a CompTox API key in the ctx_api_key environment variable.

For the current source-DTXSID and mixture-review controls, including the entire long Override dialog, see Reviewing a source chemical identity. The SSWQS screenshots below illustrate the earlier dataset walkthrough; the linked guide uses current full-app captures and clearly labelled synthetic data.

1. Upload

Choose a CSV or XLSX file in the sidebar. Data Preview shows the first rows along with row and column counts, the share of missing values, and how confident CONCERT is about where the data starts. Use Column Selection in the sidebar to drop columns you don’t need.

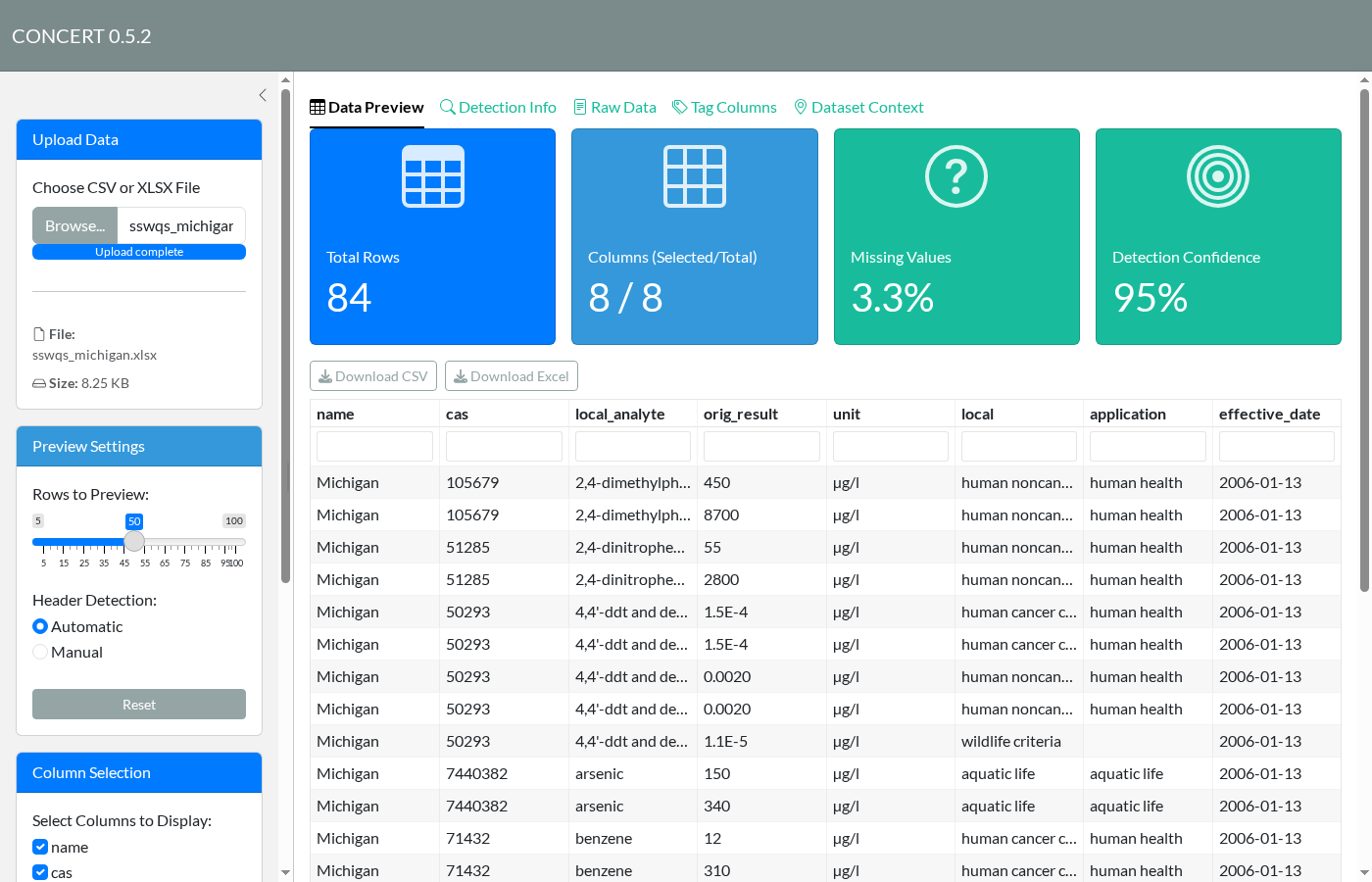

Data Preview after uploading the Michigan file

2. Check header detection

Detection Info explains which row was taken as the header and where the data starts. Three methods vote. If they picked the wrong row, for example in a report with a title block above the table, switch Header Detection in the sidebar to Manual and set the rows yourself.

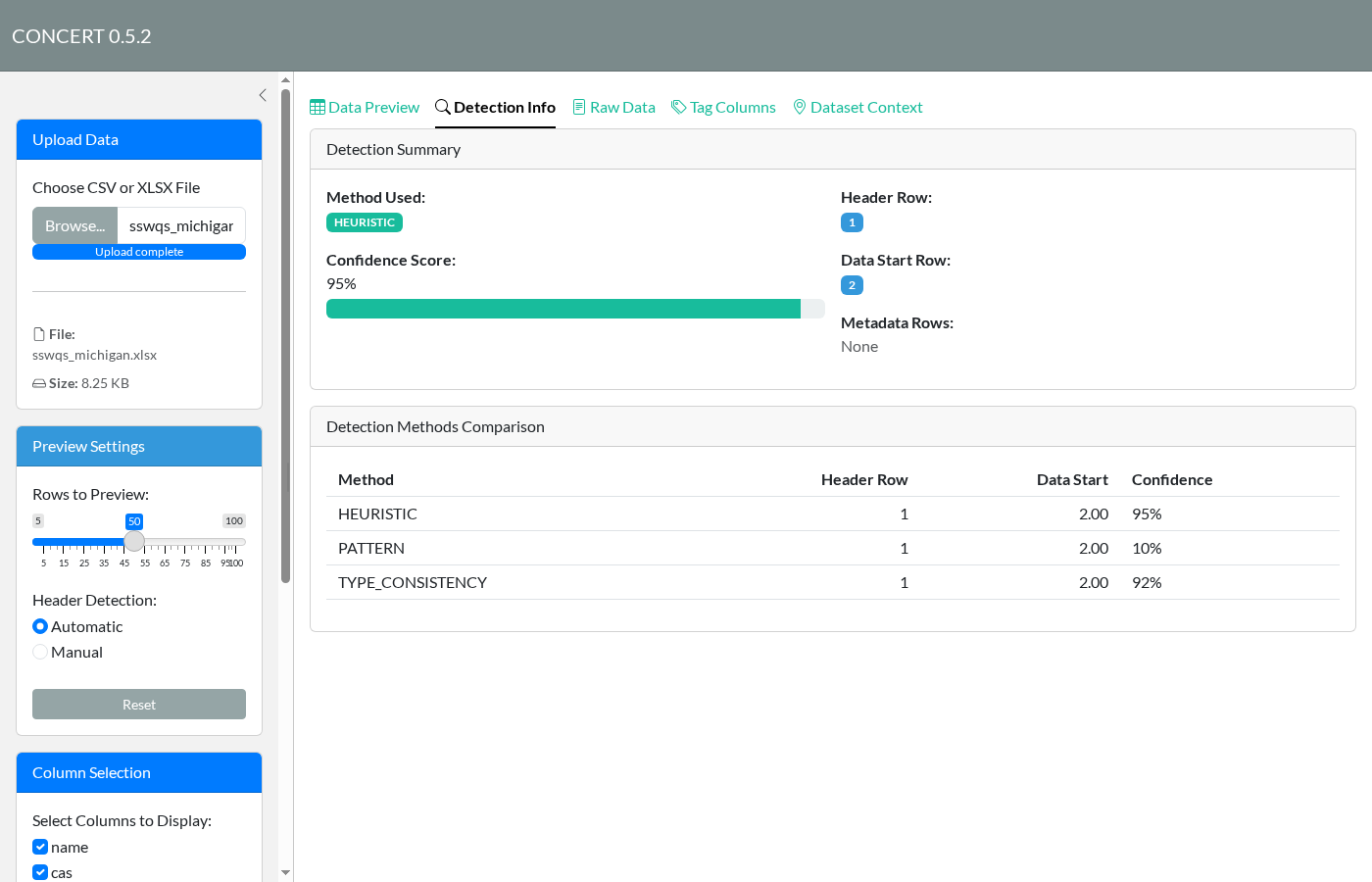

Detection Info: header on row 1, data from row 2

3. Tag columns

Tag Columns tells CONCERT what each column holds. Click Suggest Tags to fill in tags guessed from column names and contents; suggestions are marked suggested. Here it picks local_analyte as the chemical name, cas as CASRN, orig_result as the result, and unit as its unit. Leave columns you don’t need untagged; they still go through to the export. Every Result column needs a Unit column. Click Apply Tags when you’re done.

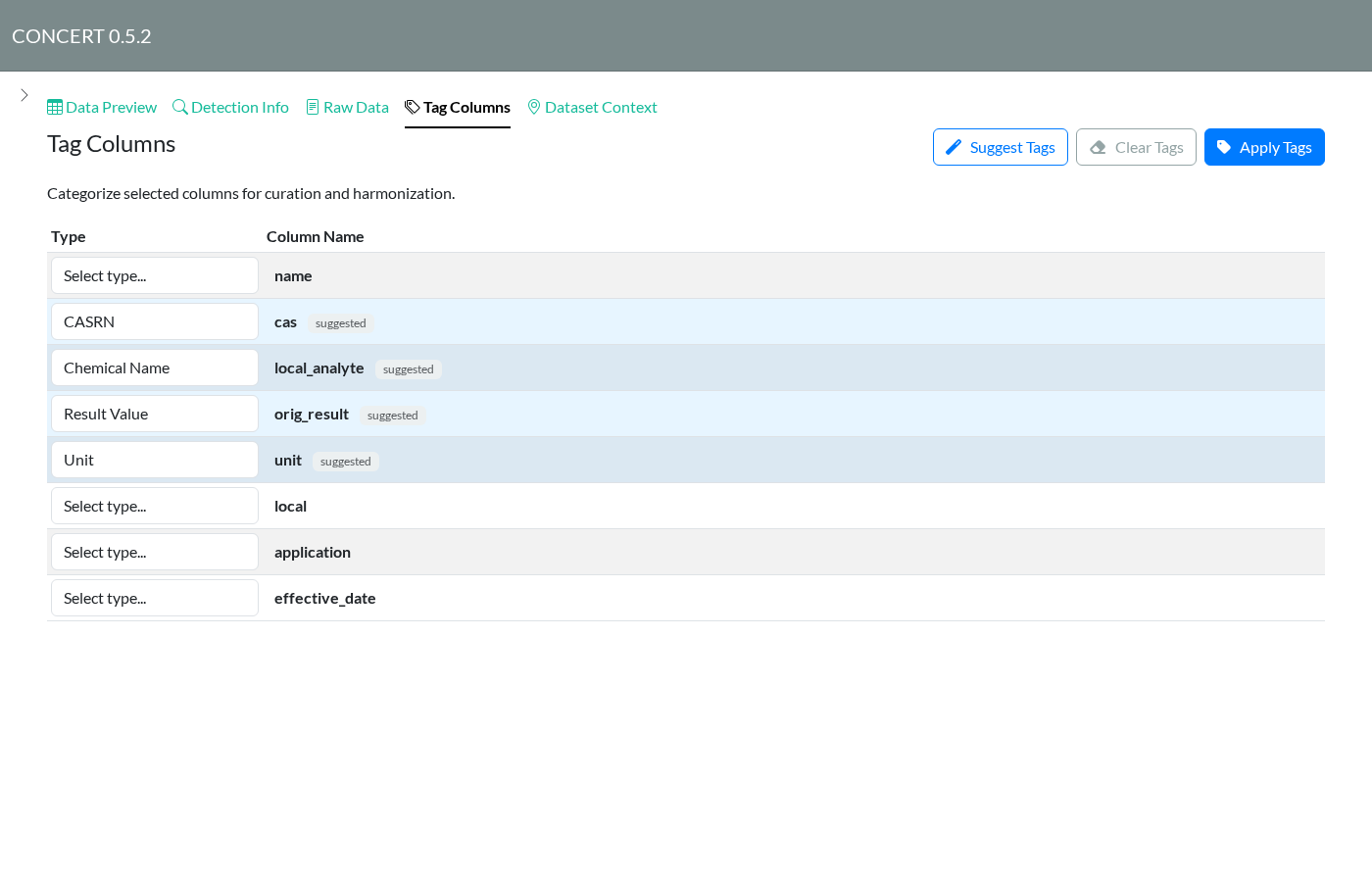

Tag Columns with suggested tags

4. Clean

On Clean Data, click Run Pipeline. The pre-flight check estimates how many rows each step would change and pre-selects the steps that would do something. Here that means Unicode clean-up (µg/l becomes ug/l), CAS normalization, name cleaning, and multi-analyte detection. Click Run Checked Steps.

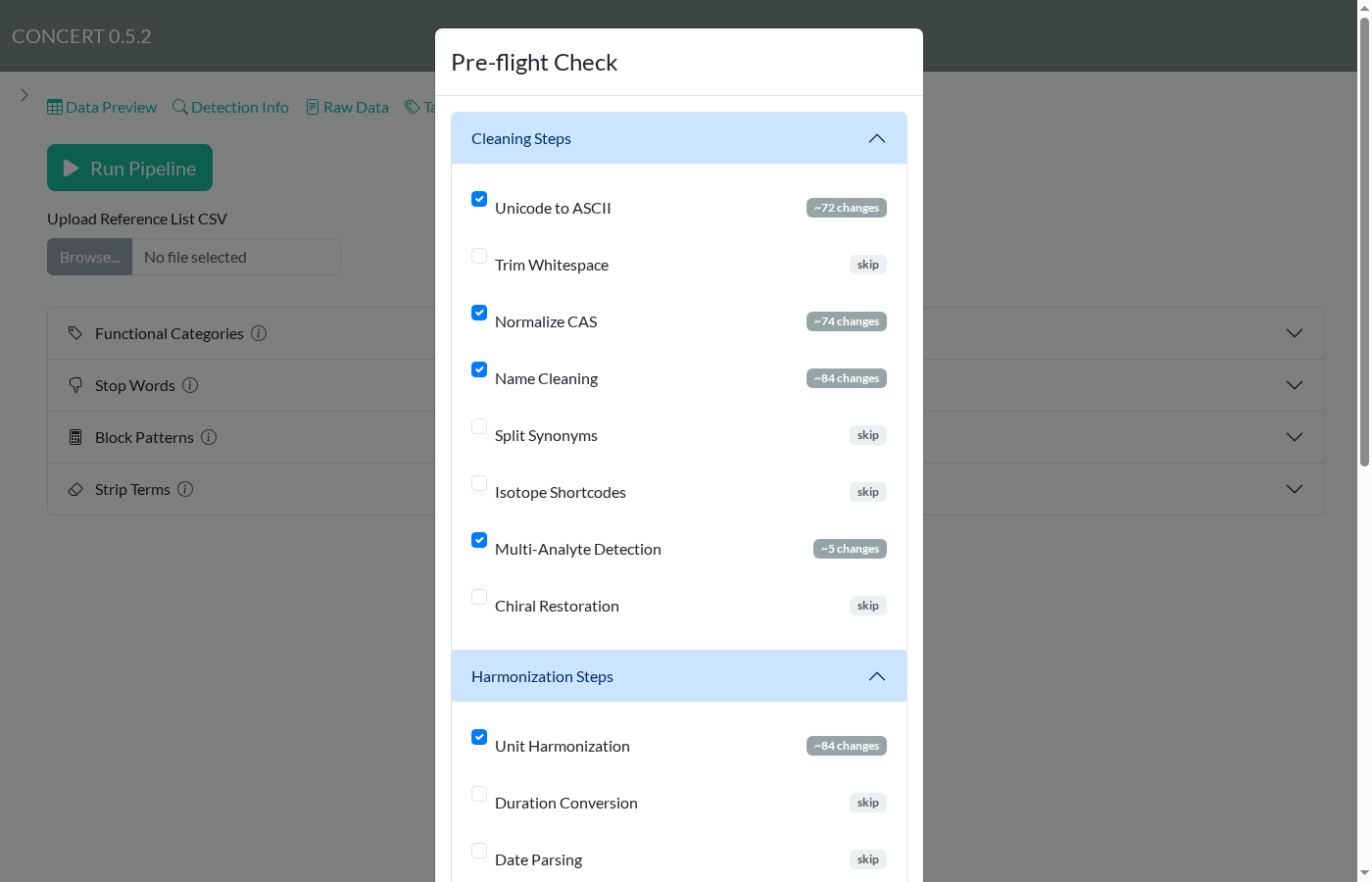

Pre-flight check

For the complete current pre-flight dialog, including the search settings and run/cancel buttons below this older capture, see the two overlapping pre-flight images in Reviewing a source chemical identity.

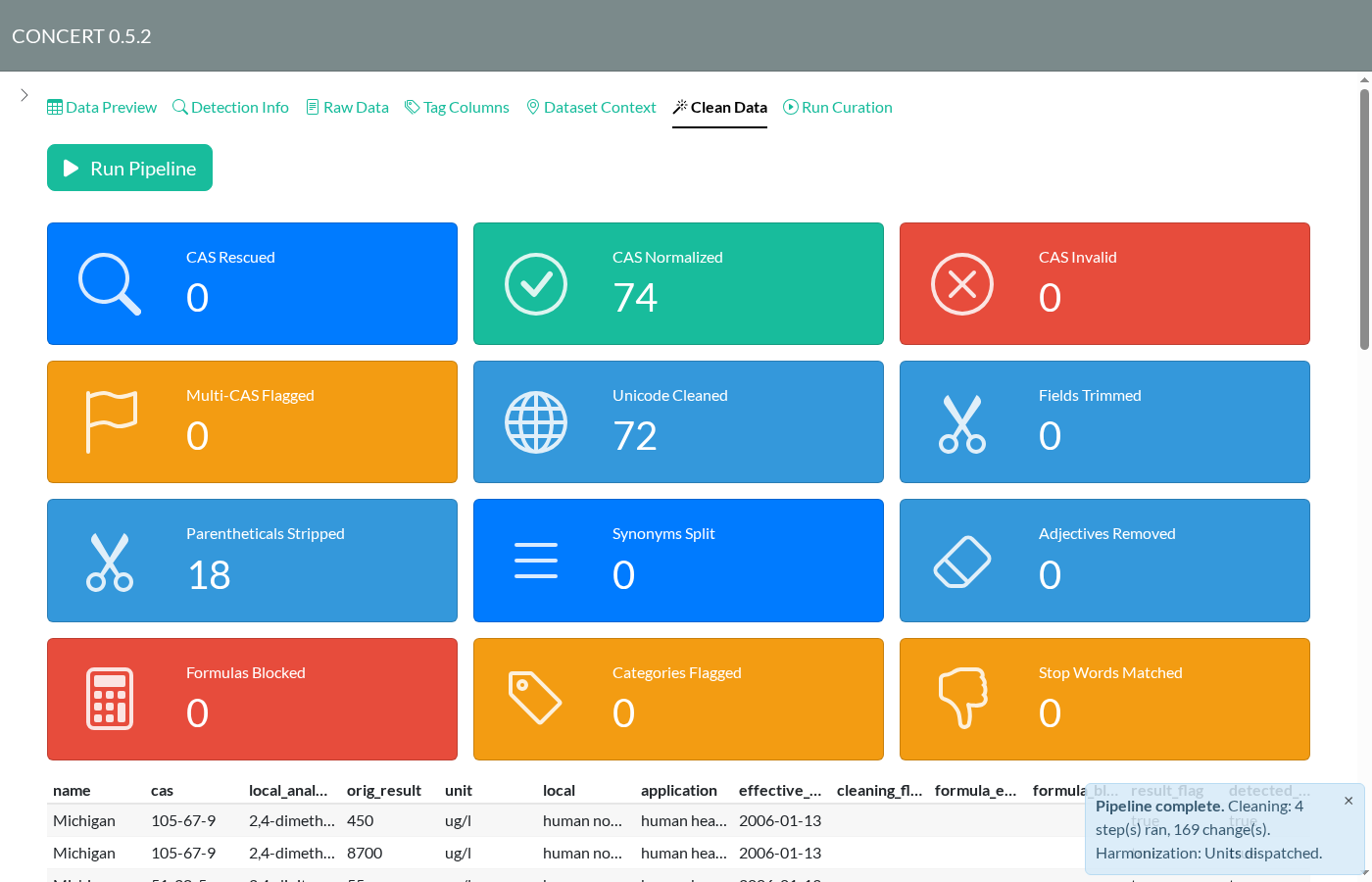

The summary cards count what changed: 74 CAS numbers normalized (105679 became 105-67-9) and 18 parentheticals stripped from names. The cleaned table below them flags anything that needs a second look.

Clean Data results

5. Run curation

Run Curation shows what will be looked up. Duplicates are collapsed first, so 84 rows become 27 names and 24 CAS numbers. Click Start Curation. CONCERT queries CompTox for names and CAS numbers, matches water-quality parameters against WQX, and scores the candidates. This dataset takes about 20 seconds.

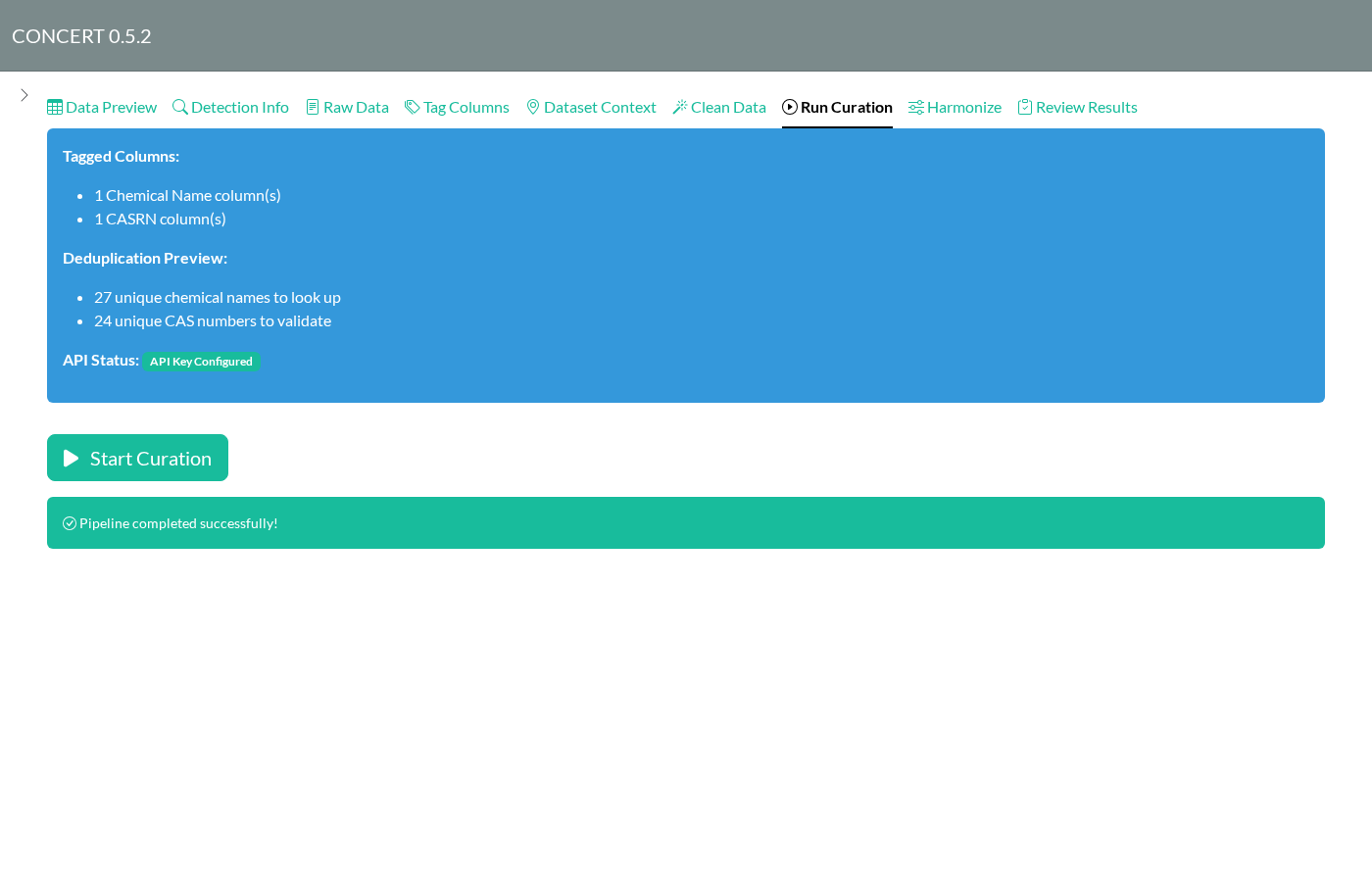

Run Curation after a successful run

6. Review results

Review Results is where you check and fix the identities. The cards at the top count rows that resolved, rows where the name and CAS lookups disagree, errors, and rows that were resolved automatically or only suggested.

These cards describe lookup consensus. A resolved lookup is provisional evidence; it does not establish accepted source identity. Override now also exposes Source identity correspondence for an explicit decision about one source entry. See the linked source-identity guide for validation, scope and flags.

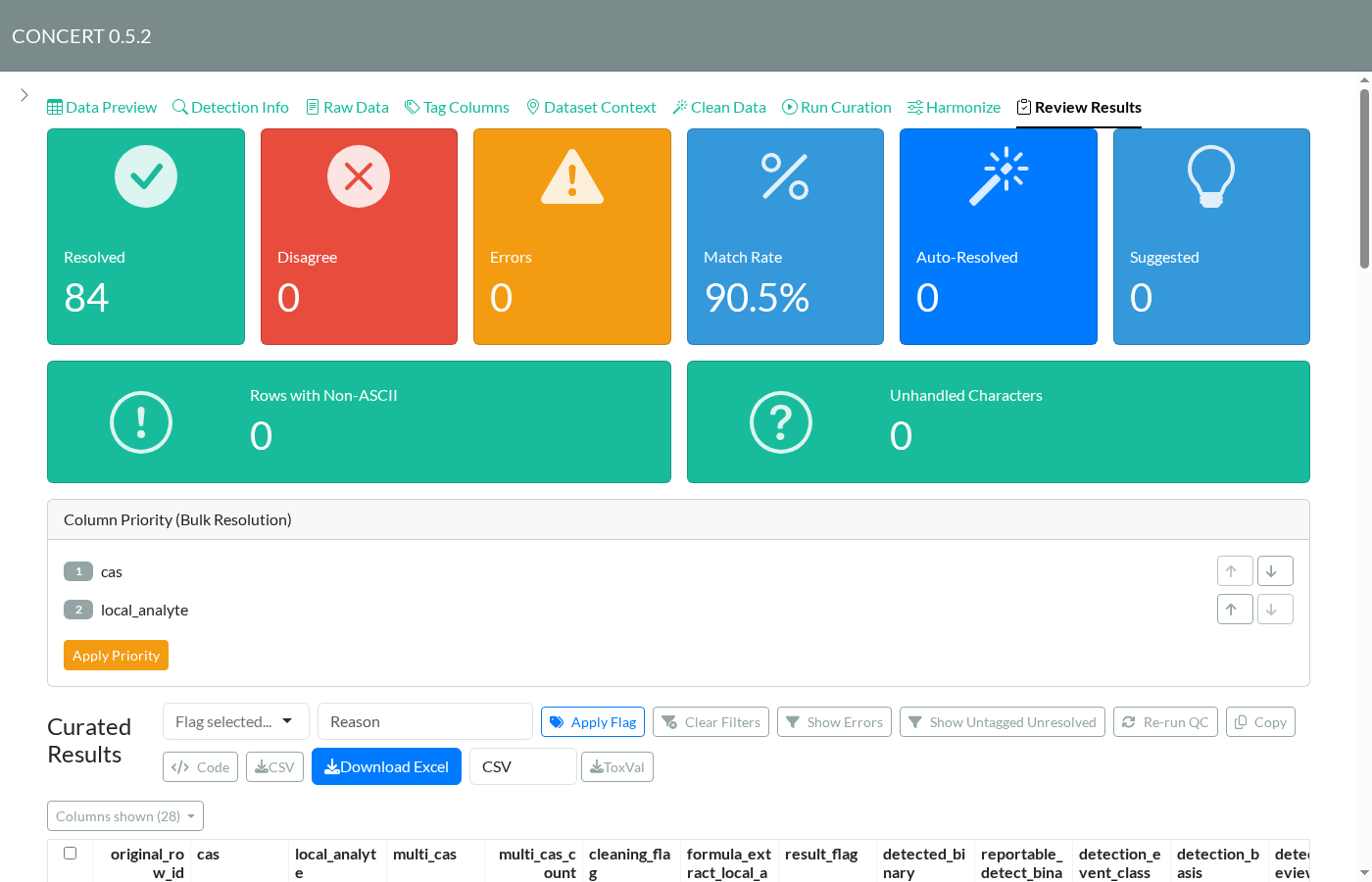

Review Results summary

Each row in the table has a Resolution with a DTXSID and preferred name. Use Override to replace it. consensus_status shows how the resolution was reached:

agree: the name and CAS lookups found the same substance.
single: only one lookup returned a hit. Here, 4,4'-ddt and derivatives only resolved by CAS and was also flagged as a possible multi-analyte entry. Check rows like this by hand.
wqx: matched a water-quality parameter such as pH or total dissolved solids, which has no DTXSID. Review shows the WQX match.

Choose which columns to display with Columns shown. To filter to problem rows, use Show Errors and Show Untagged Unresolved. To flag rows, select them, choose a flag and reason, then click Apply Flag.

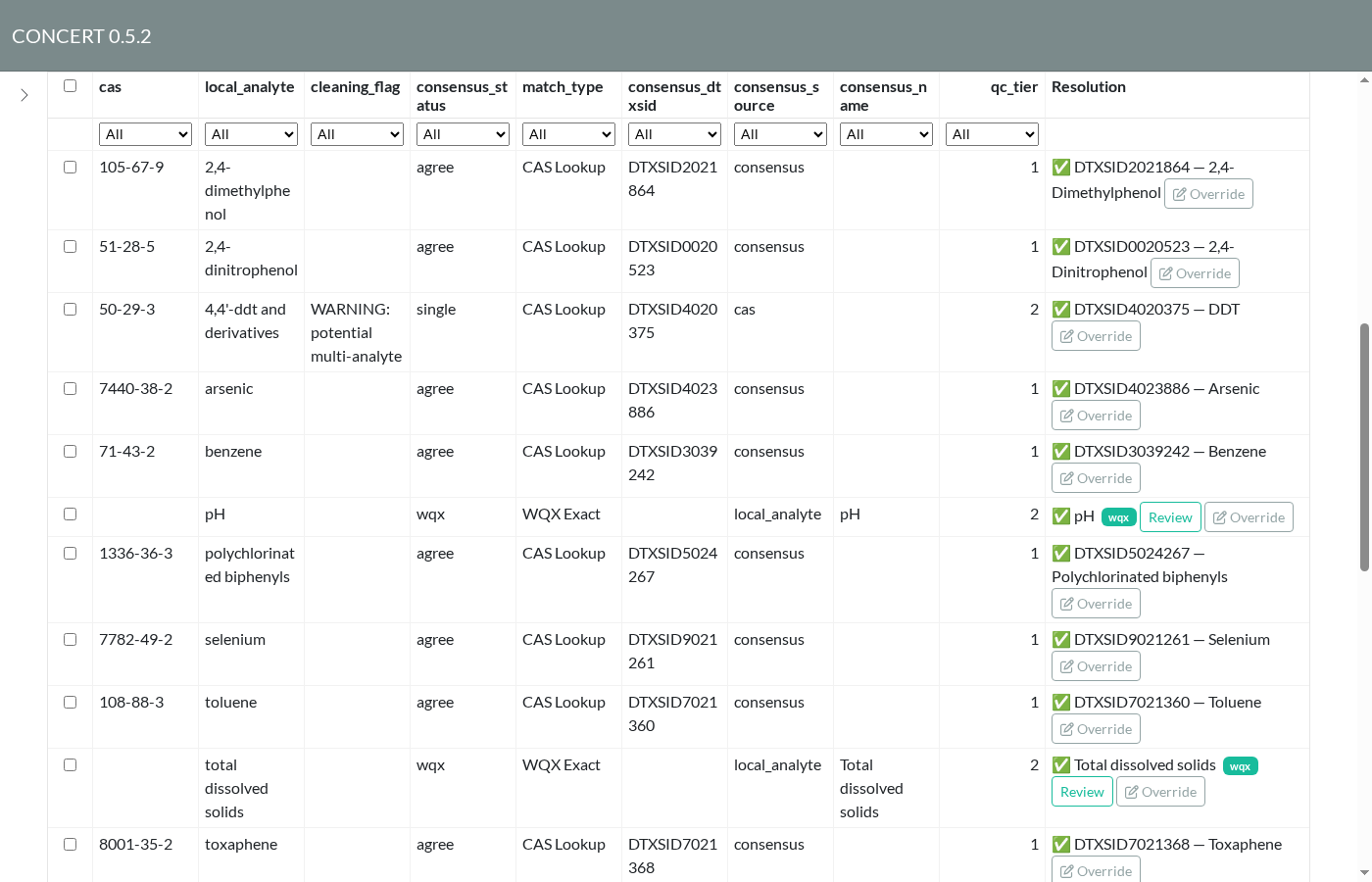

Review table, showing identity columns

7. Harmonize

Harmonize reports how numeric results were parsed and how units were converted. Open Unmatched Units and Numeric Parse Issues to fix anything the converter didn’t recognize. Fixes go in Unit Table Editor and Corrections Editor. Media Classification maps media terms to the ontology.

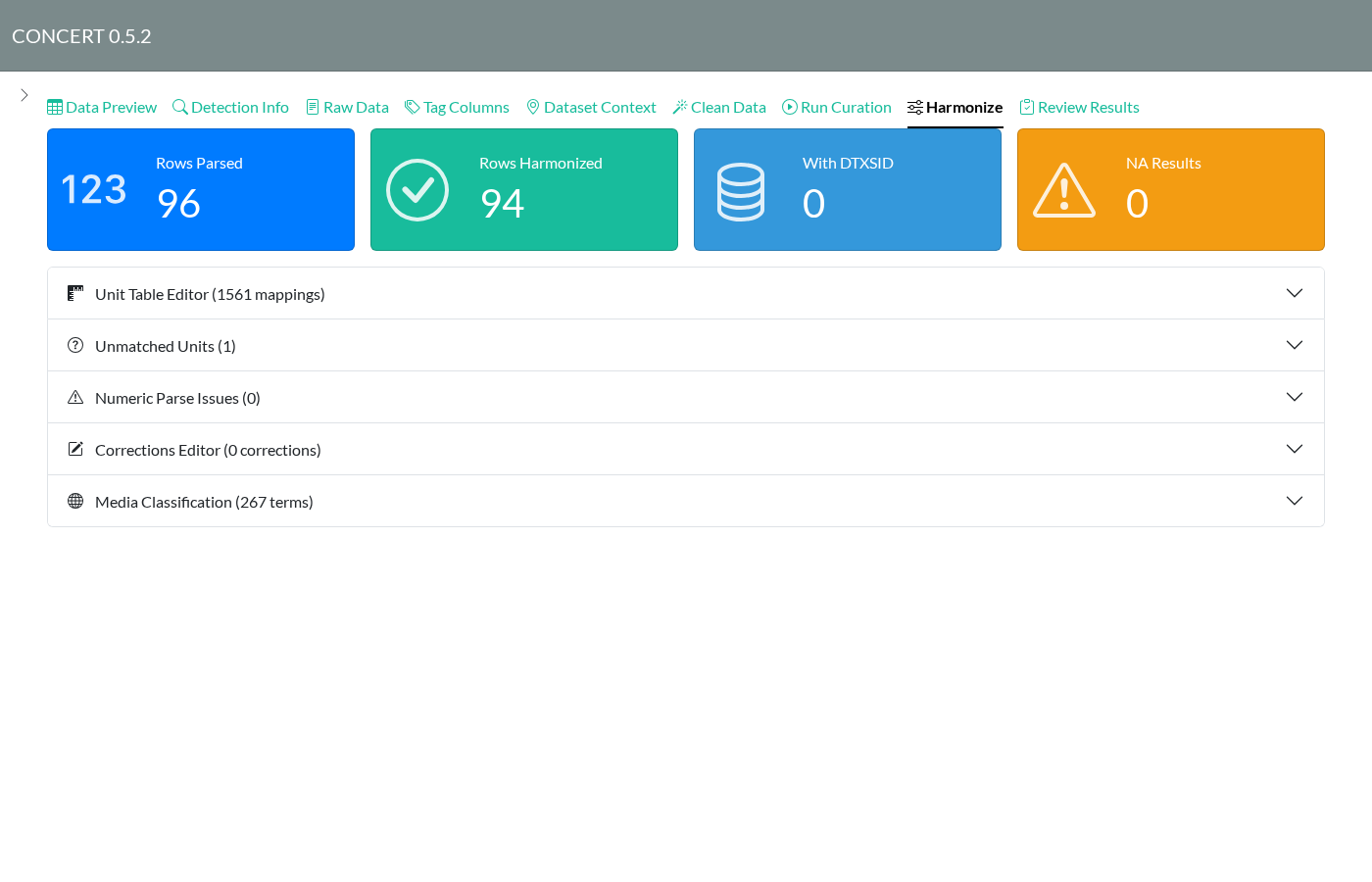

Harmonize summary

8. Export

Back on Review Results, Download Excel writes the curated workbook with audit sheets. ToxVal writes ToxVal-format rows as CSV or Parquet. Code shows an R script that replays the session headlessly.

Upload the workbook using the ordinary file-upload control and choose Resume Session to restore the full review, including source decisions, evidence and applied cleaning choices. Choose Treat as Raw Data for a fresh workflow. The Pipeline Config sheet also supports sidebar Import Configuration when you only want to restore tags and reference-list edits.

Updating these screenshots

The screenshots come from scripts/capture_app_screenshots.R, which drives the installed app through the steps above. After UI changes, reinstall the package and run:

source("scripts/capture_app_screenshots.R")
capture_app_screenshots()

Current source-review screenshots were captured from the running full app with the collaborative browser and process-local mocked services. Long dialogs use overlapping scroll captures so their evidence, actions and footer are included. Capture details are in figures/identity-screenshot-capture.md.
